Pentagram

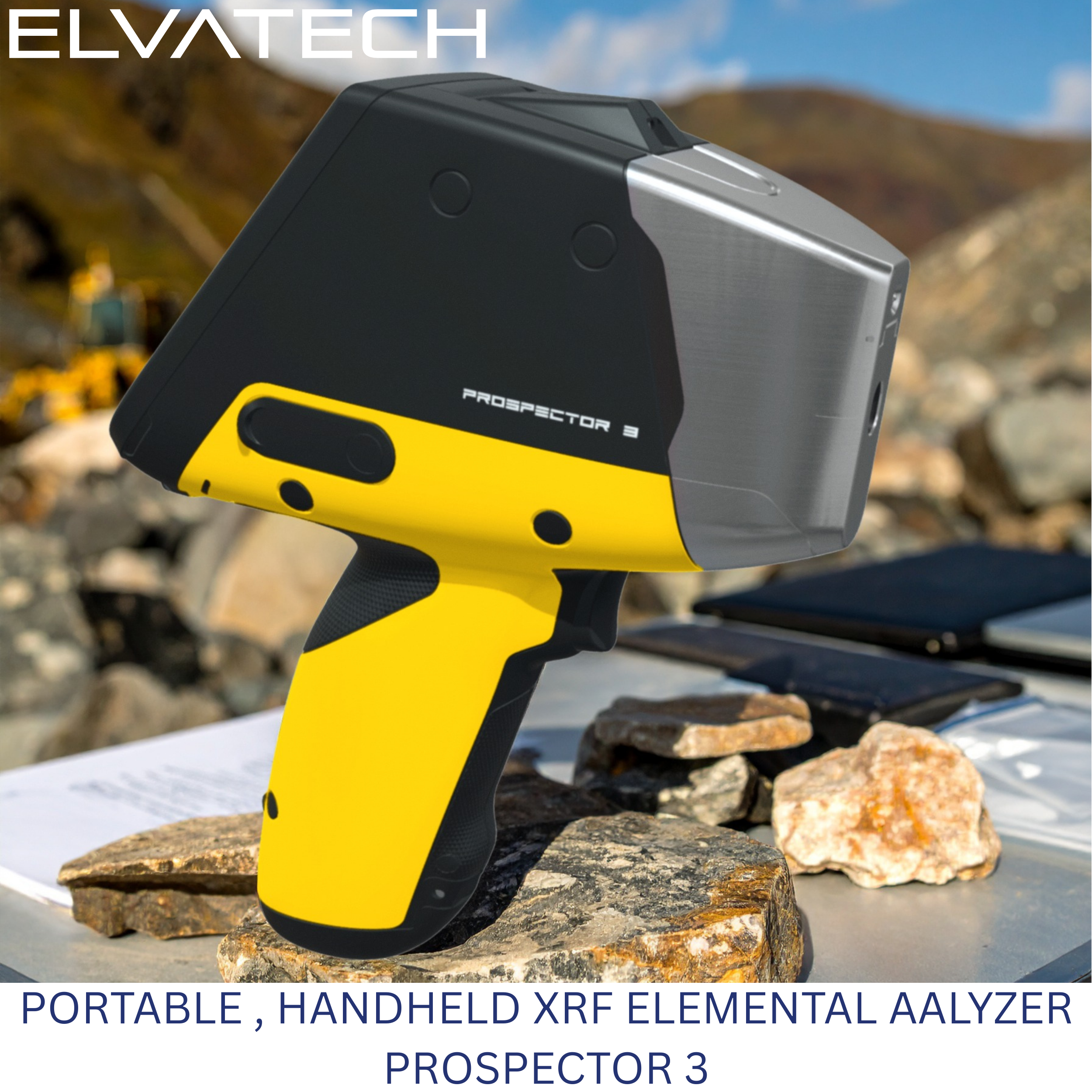

ProSpector 3

The fastest, lightest and smallest XRF gun on the market

In a laboratory conducting rare-earth element research, ProSpector 3 Max quickly and accurately analyzes complex samples, delivering precise elemental composition even at trace concentrations. Its helium purge capability enhances detection of the lightest elements, ensuring fast, accurate results and improving overall research efficiency.

Full range of applications:

  • Complex Alloy Analysis in Metallurgy
  • Mineral and Ore Analysis in Geology
  • Quality Control for Construction Materials
  • Electronics Component and Solder Testing
  • Precious Metals and Advanced Jewelry Inspection
  • Detection of heavy metals and pollutants in water, soil, and air

Download Brochure

  • World’s fastest XRF analyzer (throughput above 500 000 cps – more than four times faster than any other handheld XRF) – highest accuracy within the shortest measurement time, excellent precision
  • World’s smallest (236 х 193 х 68 mm), and lightest (1.05 kg with a battery) handheld analyzer – easy to operate
  • Dustproof and waterproof instrument body, with IP-67 ingress protection rating – ProSpector 3 can be operated even under water!
  • Automatic collimator changer for small spot analysis of jewelry, welds etc.

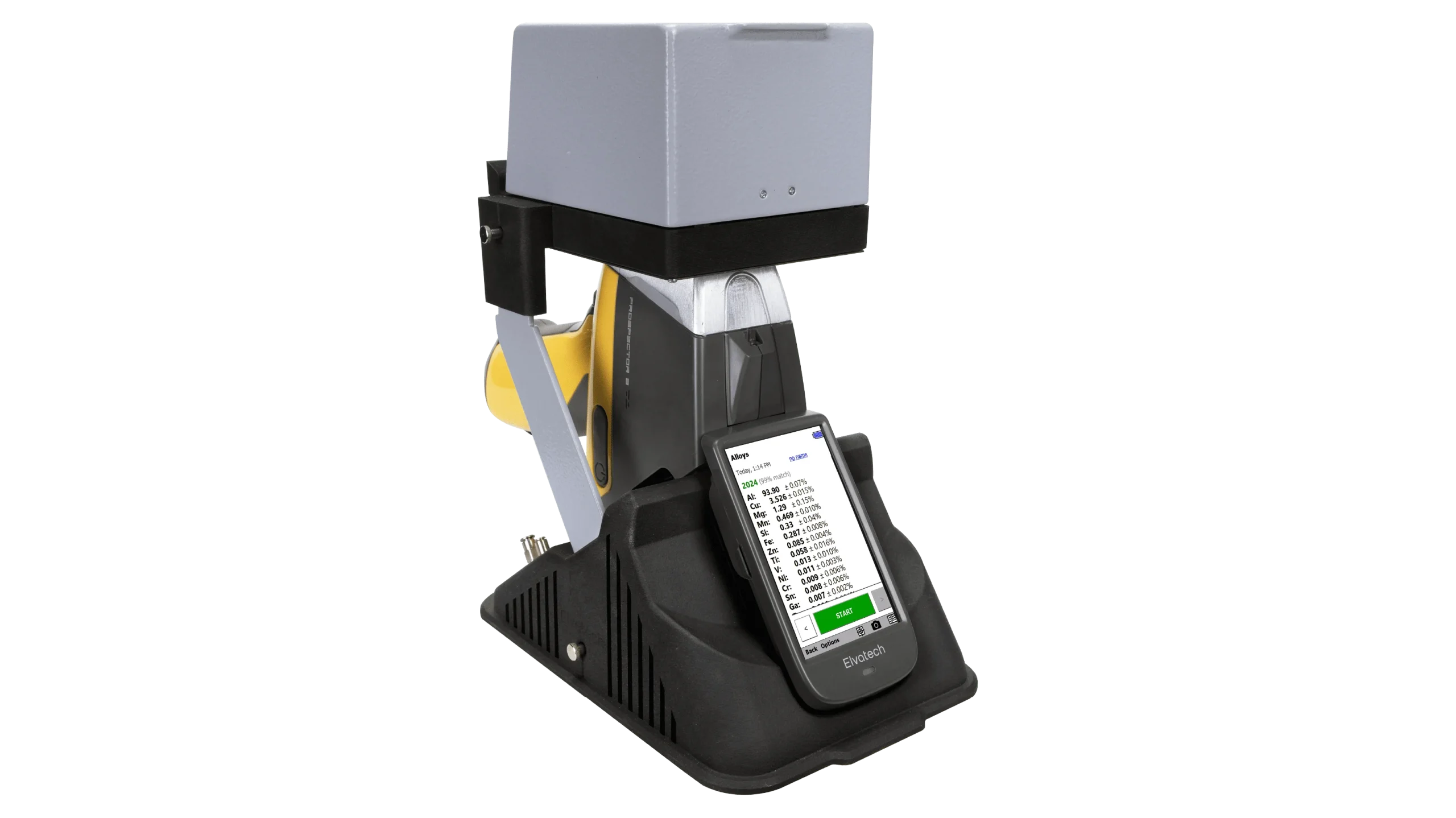

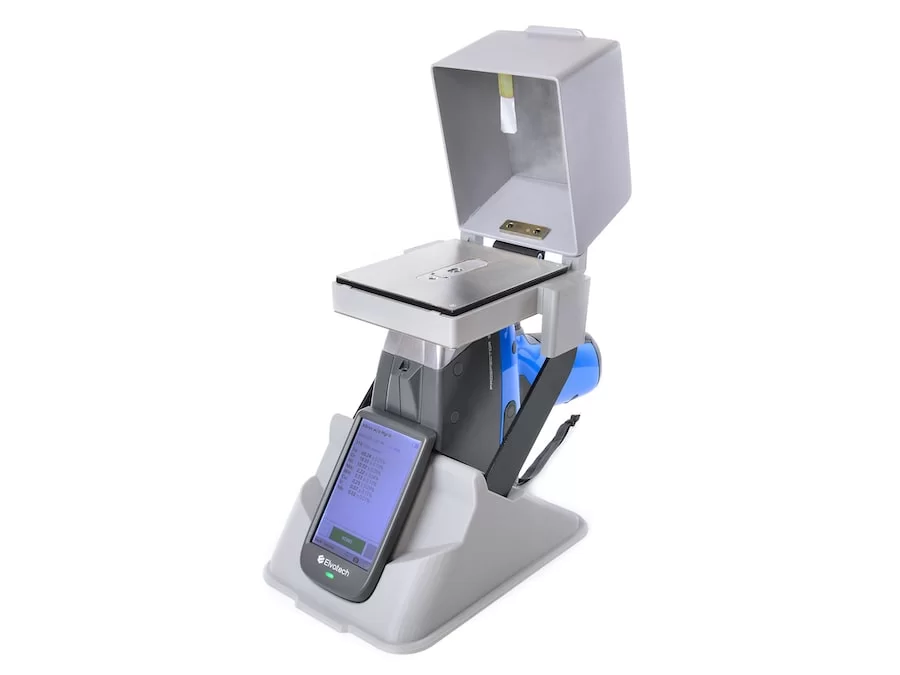

  • Folding display – for easy operation in the lab stand without connecting to a PC
  • Highest mobility – up to 16 hours of autonomous operation on a single battery charge, hot battery swap
  • Superior calibration stability, compensation of influence of ambient temperature and pressure variations – no need to spend time for calibration
  • Two CCD cameras for macro- and micro- view
  • Scanning barcodes (commodity EAN and UPC codes, QR codes, book ISBN codes, Databar, Codabar, etc.) that contain information about the sample: name, number, code, etc.
  • Full compatibility with ElvaXTM PC software
  • Radiation safety: proximity sensor and low count rate detection

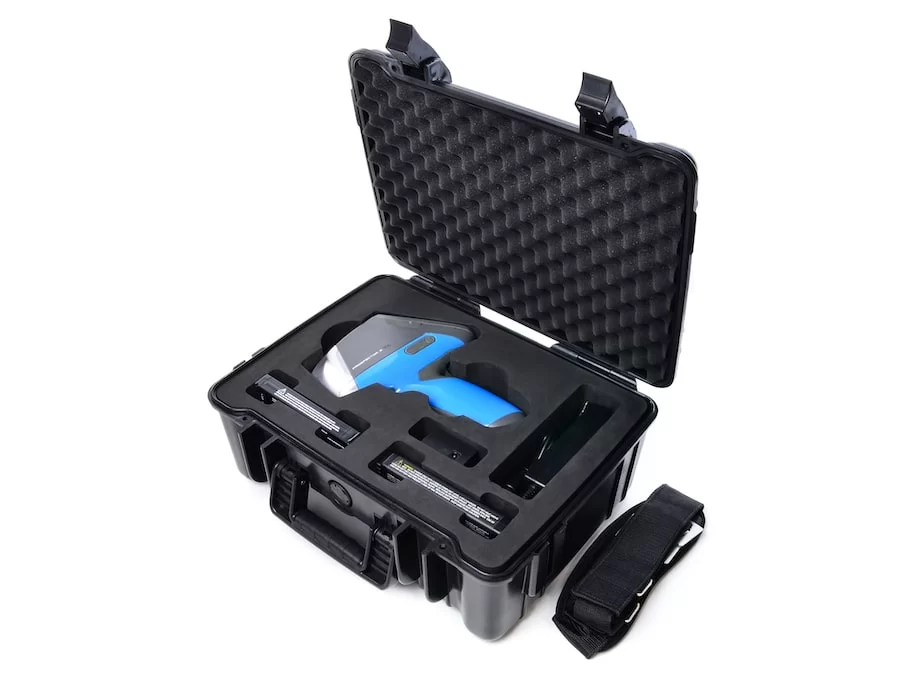

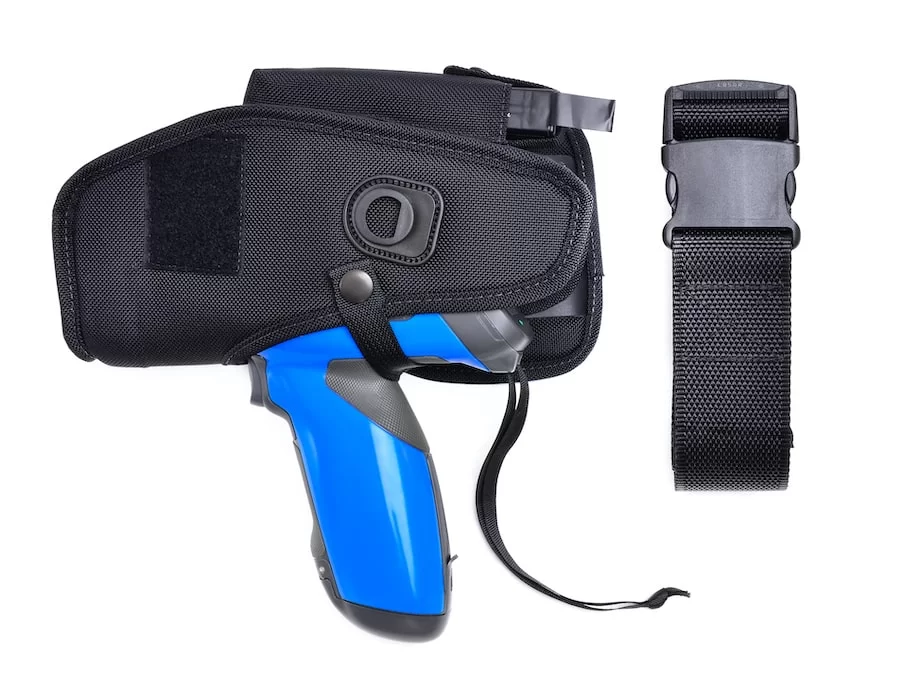

  • Great choice of accessories for comfortable work.

Data can be transferred from ProSpector 3 to a PC directly via USB, WiFi or Bluetooth connection. MicroSD socket is also available for data storage and transfer. The detector shield protects detector window, the most fragile part of the instrument, from being punctured by sharp objects like wires, shavings etc.

Specifications

X-ray Tube: Rhodium anode, 50 kV
Detector: Large-area Silicon Drift Detector (SDD)
Filters & Collimator: 8-position automatic filter changer; 2-position collimator
Detector Window: 1 µm Graphene
Detection Range: Na – U
CCD Camera: Sample‑view; macro‑view
Dimensions & Weight: 178 × 88 × 40 mm; 1.16 kg
Ingress Protection: IP67 dust‑ and waterproof (with silicone cover)
Connectivity: Bluetooth & Wi‑Fi; GPS
Environmental Correction: Temperature & barometric
Helium Purge: Option, for optimal light element detection

Choose ProSpector 3 Max for unmatched sensitivity, ultimate versatility, and accurate XRF analysis tailored for complex analytical tasks in diverse environments.
