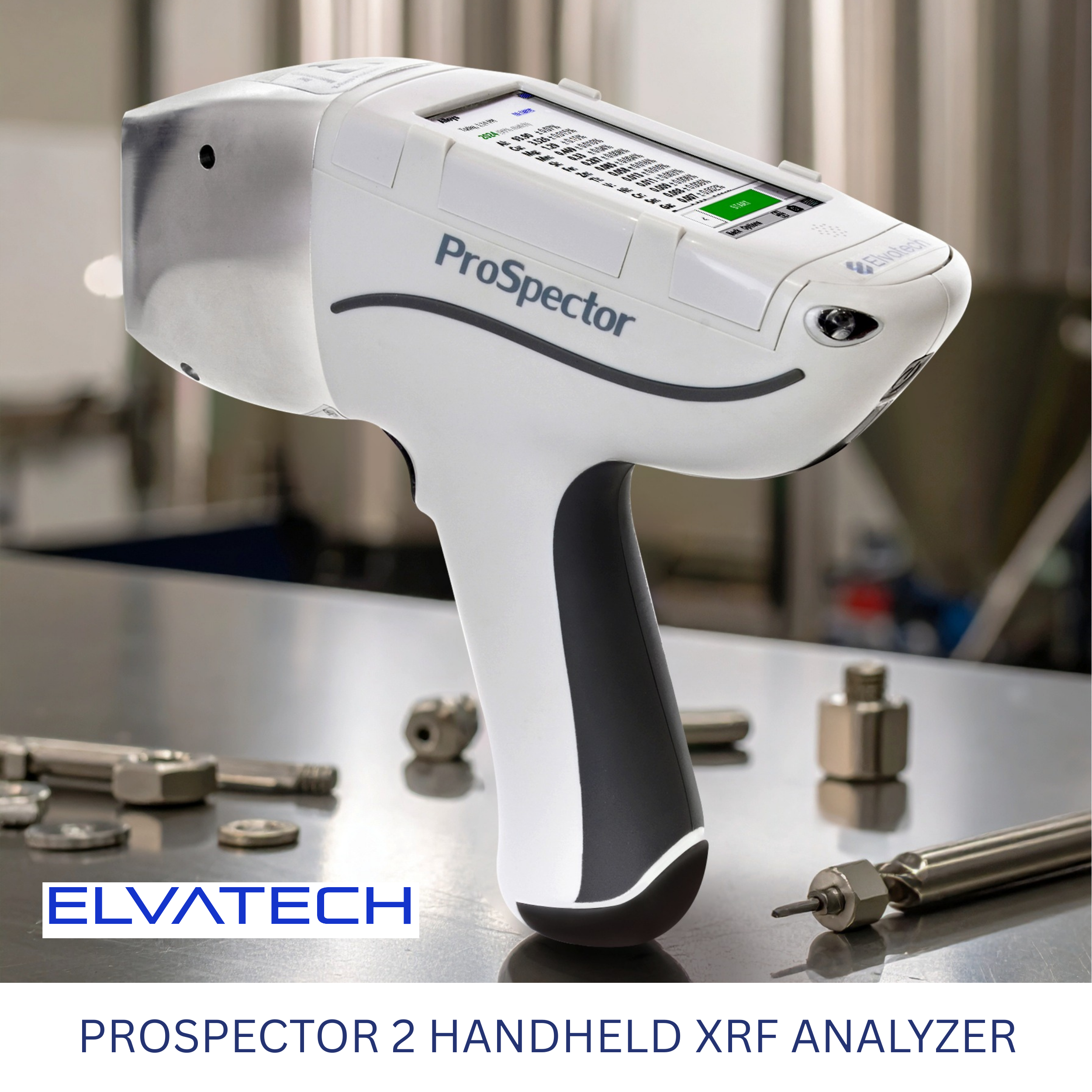

ProSpector 2

Portable XRF Analyzer for Precise Elemental Analysis

ProSpector 2 is our time-tested handheld XRF analyzer.  Due to the advanced electronics and state-of-the-art mathematical algorithms, ProSpector 2 provides ultimate quality of measurement within a couple of seconds. It is an intuitive and user-friendly instrument for highly accurate elemental analysis in a variety of applications.

Download Brochure

- +
  • High speed of operation @ above 500 000 CPS count rate
  • Ambient temperature and pressure corrections for highest stability
  • Over 10 hours operation from the battery
  • Detector protection
  • Extensive and editable alloy grade library
  • Protective film replacement with no tool required
  • Full compatibility with ElvaXTM PC software
  • Radiation safety: IR proximity sensor and low count detection
  • Scanning barcodes (commodity EAN and UPC codes, QR codes, book ISBN codes, Data bar, Coda bar, etc.) that contain information about the sample: name, number, code, etc.

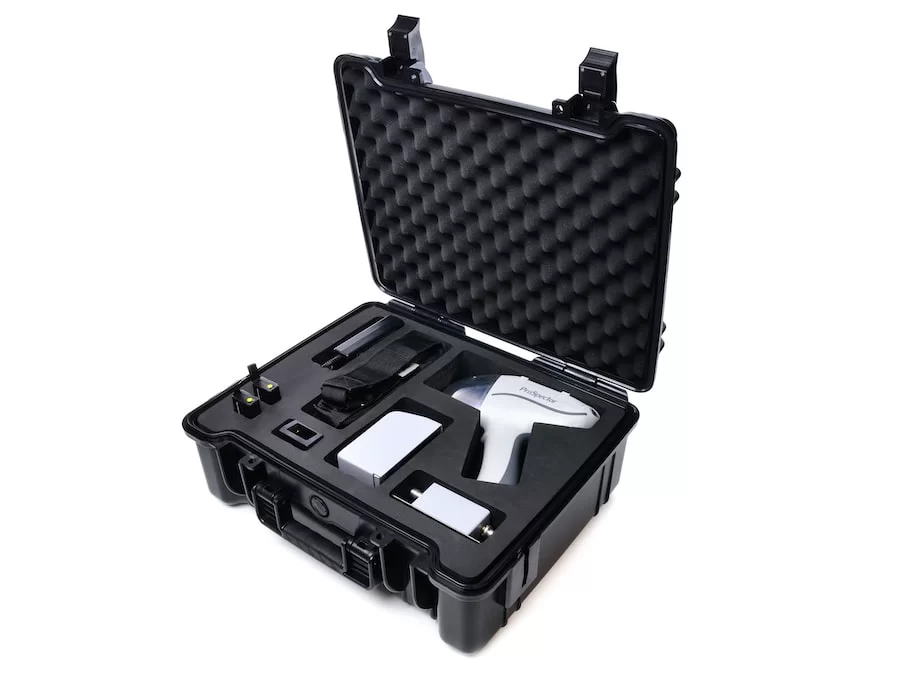

  • Great choice of accessories for comfortable work.

Specifications

X-ray Tube: Tungsten anode, 40 kV (optional 50 kV)
Detector: Silicon-PIN detector
Filters & Collimator: Single fixed filter & collimator
Detection Range: Cl – U
Dimensions & Weight: 242 × 230 × 78 mm; 1.4 kg
Ingress Protection: IP54 (dustproof and waterproof)
Connectivity: Optional Bluetooth & Wi-F

Choose ProSpector 2 for dependable, straightforward analysis of most elements at an affordable
price point.
