- Excellent calibration stability, compensation of ambient temperature and pressure variations
- Intuitive interface
- Mobility
- Integrated PDA
- Full compatibility with ElvaXTM PC software
- Optional sample spinner for better averaging of inhomogeneous samples
- Optional high-resolution CCD camera for precise sample positioning

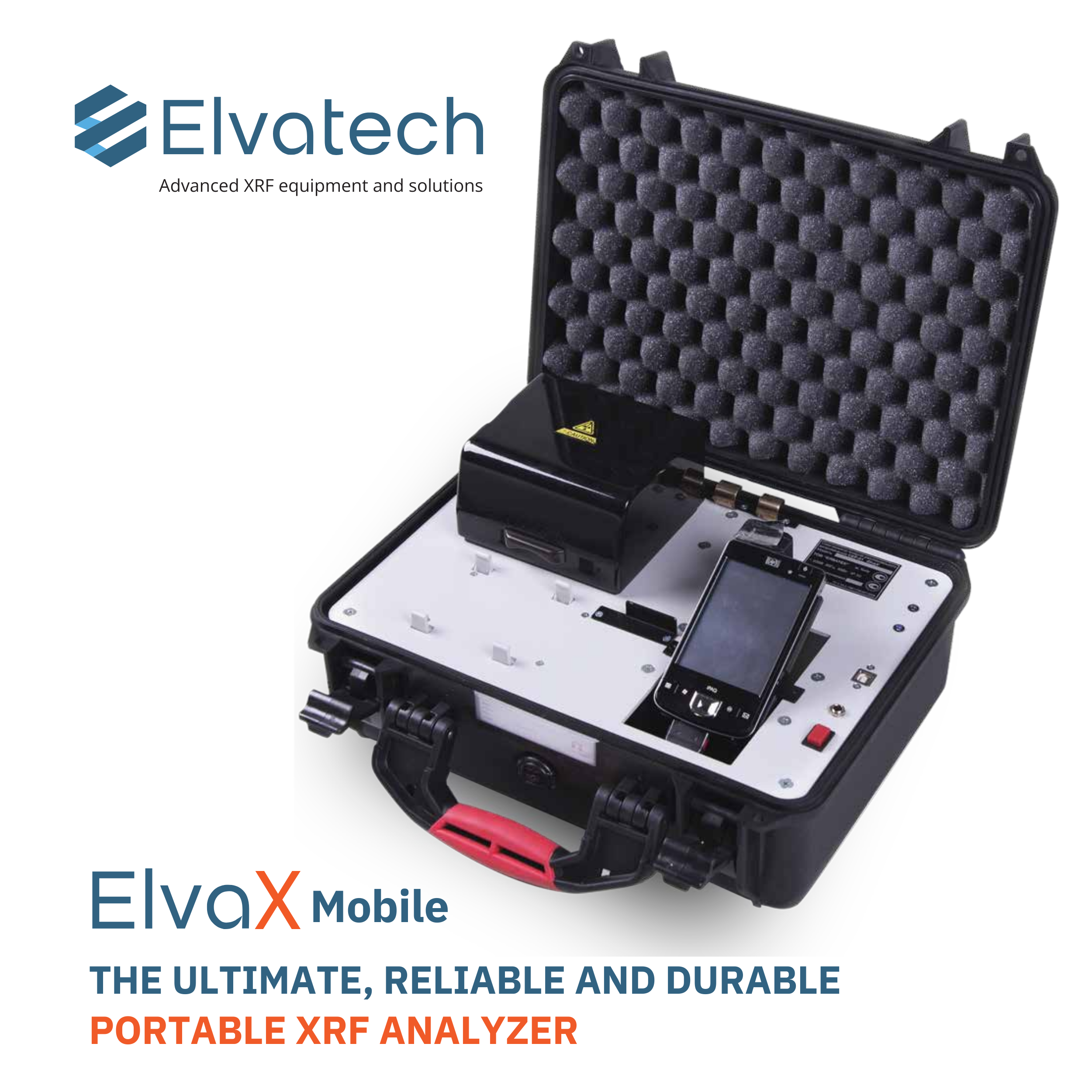

Elva X Mobile
The Ultimate, Reliable and Durable Portable XRF Analyzer

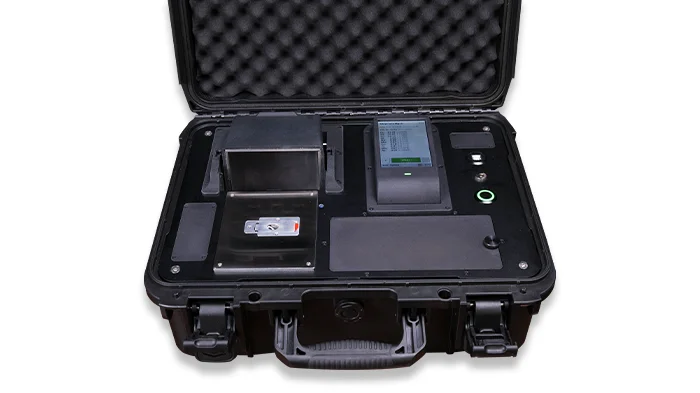

ElvaX Mobile is a portable EDXRF analyzer for testing a wide variety of materials.

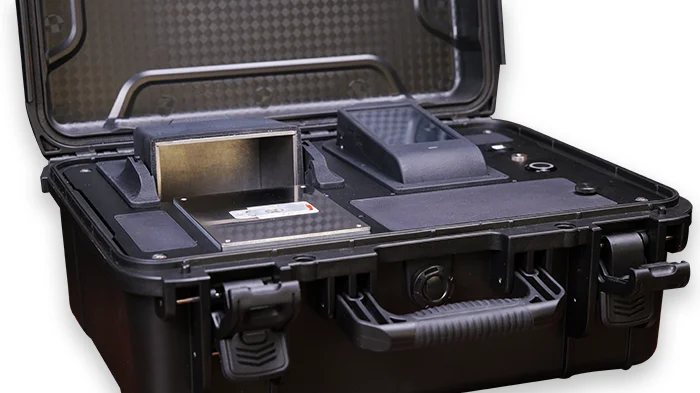

The sampling tray, similar to a benchtop instrument, allows the convenient placement of XRF sample cups. The high-resolution SDD detector and large measurement spot ensure a high count rate, crucial for quick detection of trace elements.

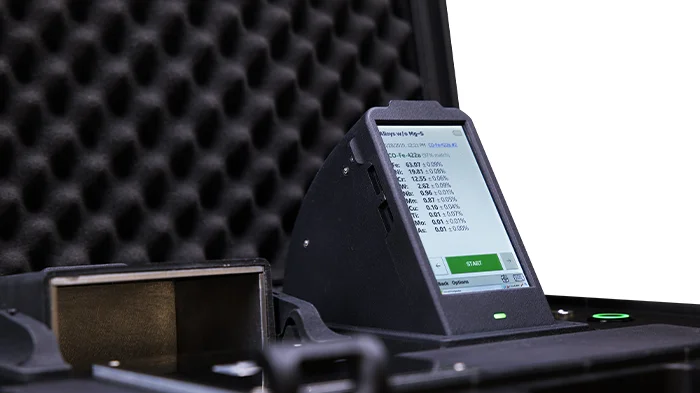

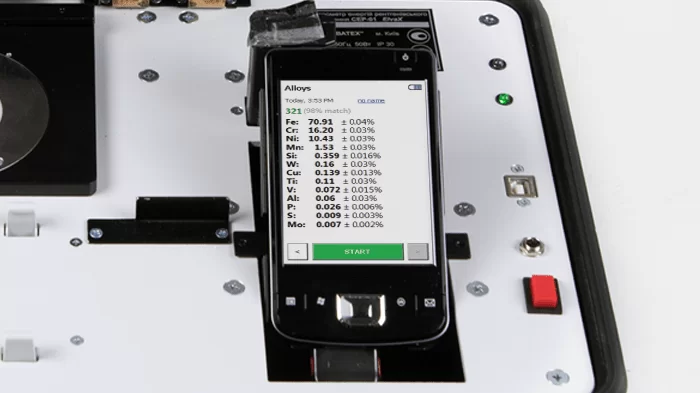

The ElvaX Mobile is a perfect tool for testing soil and petrochemicals or any other applications where testing liquids and powders are required on site. The PDA integrated into the instrument has an intuitive interface as well as a bright, high- resolution screen. ElvaX Mobile can be synchronized with a desktop computer via USB, Wi-Fi or Bluetooth.
Applications
Specifications
Digital X-Ray Source digiX-40 (digiX- 50)
Anode: W (Rh, Ag)
Voltage: 40 kV (50 kV)
Current: 200 uAmp
Power: 4 W (5 W) 5 p
osition filter changer (option)
X-Ray Detector
Type: Si-PIN (optional CSA SDD)
Area: 6 mm2 (30 mm2 for CSA SDD)
Energy resolution: 165 eV @ Mn Kα (140 eV for SDD)
Electronics
DPP: proprietary DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
Display: 4.3″
Connectivity: USB, Bluetooth, Wi-Fi, GPS High resolution video camera (option)
General
Dimensions: 380 x 270 x 160 mm Weight: 5.5 kg
Software
Operating system: Windows EC7Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations
