- Tuning range: 1250–1800nm
- Optimized for 1300nm and 1700nm
- Output pulse width as short as 60fs
- 1W output at 1300nm @1MHz
- Integrated GDD automatic control
- Dispersion compensation built-in

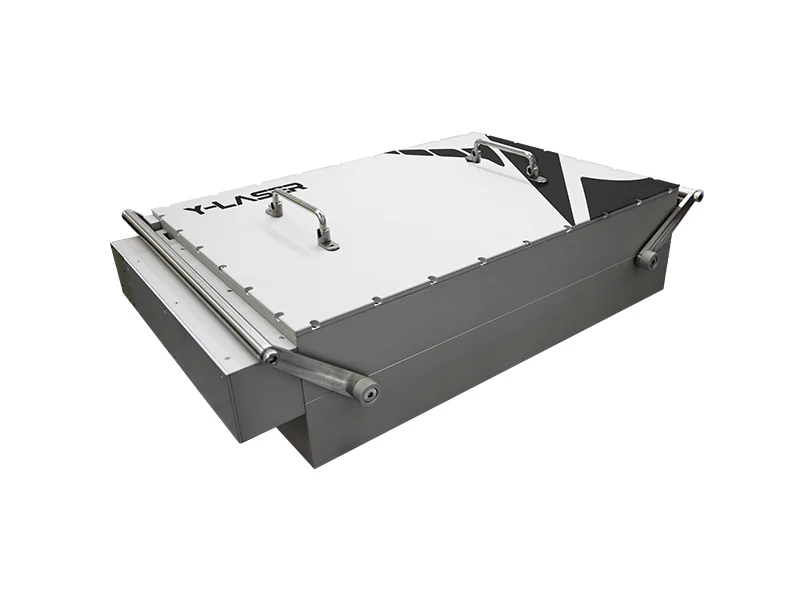

AURORA-3P
Three-Photon Imaging Source
The AURORA-3P is a broadband tunable ultrafast laser source specifically engineered for advanced three-photon imaging research. It provides wide wavelength tuning from 1250 nm to 1800 nm, with optimized performance at 1300 nm and 1700 nm, which are key excitation wavelengths used in three-photon fluorescence microscopy.
This system delivers ultrashort pulses down to 60 fs at 1300 nm, providing exceptional temporal resolution and imaging performance. With 1 W average output power at 1 MHz repetition rate, the AURORA-3P ensures strong excitation efficiency for deep tissue imaging applications.
The laser integrates automatic GDD (Group Delay Dispersion) control and built-in dispersion compensation, enabling stable operation and simplified system setup. Its turnkey design allows researchers to achieve reliable and repeatable results with minimal alignment or manual adjustment.
The AURORA-3P is an ideal solution for neuroscience, deep-tissue imaging, biomedical research, and nonlinear microscopy applications, where high power, ultrashort pulses, and wavelength flexibility are essential.
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 1250 nm |
| Wavelength Range Max | 1800 nm |
| Center Wavelength | 1300 nm |
| Pulse Width | 60 |
| Pulse Width Unit | fs |
| Average Power | 1 W |
| Beam Quality (M²) | 1.3 |
| Beam Diameter | 3 mm |
| Power Stability | <1% RMS @24h |
| Dimensions (L×W×H) | 812 × 545 × 240 mm |
| Weight | 83 kg |
