- High-energy OPA optimized for mid-infrared generation
- Accepts 400 µJ – 2 mJ pump pulse energy
- 1350 – 16,000 nm wavelength coverage with DFG extension
- >6% conversion efficiency at 1550 nm
- Designed for high-energy ultrafast experiments
- Stable long-term operation
- Optional nitrogen purge for improved mid-IR performance

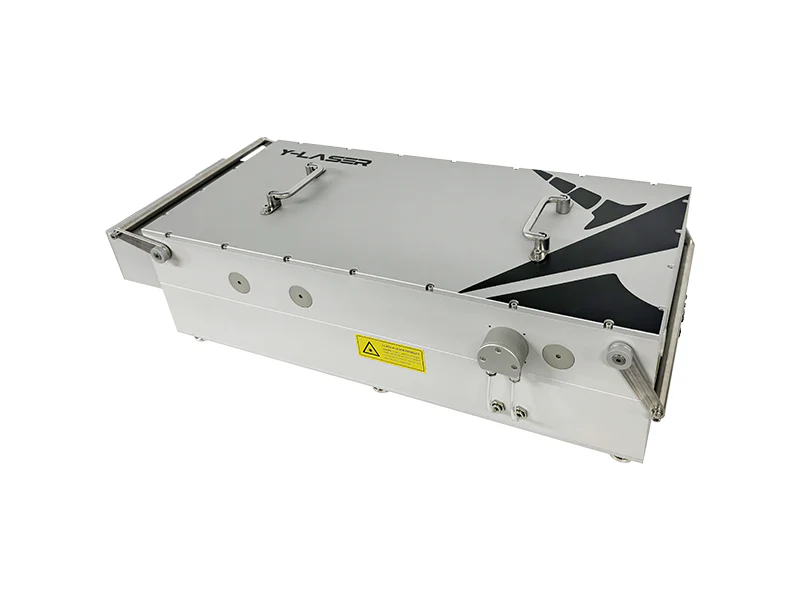

AURORA-IR
High-Energy Mid-Infrared OPA- High Energy
The AURORA-IR-HE is the high-energy variant of the mid-infrared Optical Parametric Amplifier (OPA), engineered for demanding ultrafast and high-energy mid-IR experiments. It accepts pump pulse energies from 400 µJ to 2 mJ, enabling powerful mid-infrared generation with excellent stability.
The system provides broad wavelength coverage from 1350 nm to 16,000 nm when combined with the DFG (Difference Frequency Generation) extension, making it ideal for advanced spectroscopy, nonlinear optics, and strong-field physics applications.
With >6% conversion efficiency at 1550 nm, the AURORA-IR-HE delivers high output performance while maintaining stable and reliable operation. A nitrogen purge option is available to ensure long-term stability and minimize atmospheric absorption in sensitive mid-infrared experiments.
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 1350 nm |
| Wavelength Range Max | 4500 nm |
| Average Power | 80 W |
| Pulse Energy | 2000 µJ |
| Polarization | Linear |
| Power Stability | <2% @1550nm @8h |
| Dimensions (L×W×H) | 797 × 394 × 251 mm |
| Weight | 47 kg |
