- Pump pulse energy support up to 2 mJ
- Broad tuning range from 210 nm to 16 µm (with extensions)
- Peak conversion efficiency >7%
- Compatible with pump power up to 80 W
- Optional SHG, THG, and mid-IR extension modules
- Single-click wavelength tuning for simplified operation
- High stability for high-energy ultrafast experiments

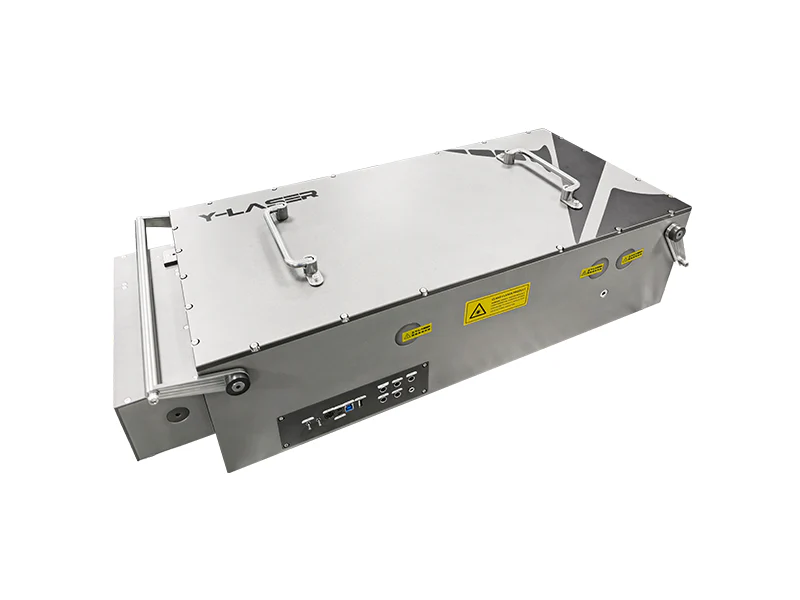

AURORA-OPA
High-energy continuously tunable femtosecond OPA
The AURORA-HE is a high-energy continuously tunable femtosecond Optical Parametric Amplifier (OPA) designed for demanding ultrafast research applications. It supports pump pulse energies from 200 µJ to 2 mJ and delivers wide spectral coverage from UV to mid-infrared (210 nm – 16 µm with extensions).
With peak conversion efficiency exceeding 7%, the system enables efficient wavelength generation across a broad spectral range. The single-click wavelength tuning feature ensures fast and convenient operation, while the robust design guarantees excellent stability for high-energy ultrafast experiments.
Optional modules such as Second Harmonic Generation (SHG), Third Harmonic Generation (THG), and mid-infrared extensions further expand the system’s wavelength capabilities for specialized research requirements.
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 650 nm |
| Wavelength Range Max | 2600 nm |
| Average Power | 80 W |
| Pulse Energy | 2000 µJ |
| Polarization | Linear |
| Power Stability | <2% RMS @750nm |
| Dimensions (L×W×H) | 79 × 394 × 251 mm |
| Weight | 47 kg |
Applications
- Carrier-Envelope Phase (CEP) stabilization
- CARS (Coherent Anti-Stokes Raman Spectroscopy)
- SRS (Stimulated Raman Scattering) microscopy
- Ultrafast spectroscopy
- Nonlinear optical research
