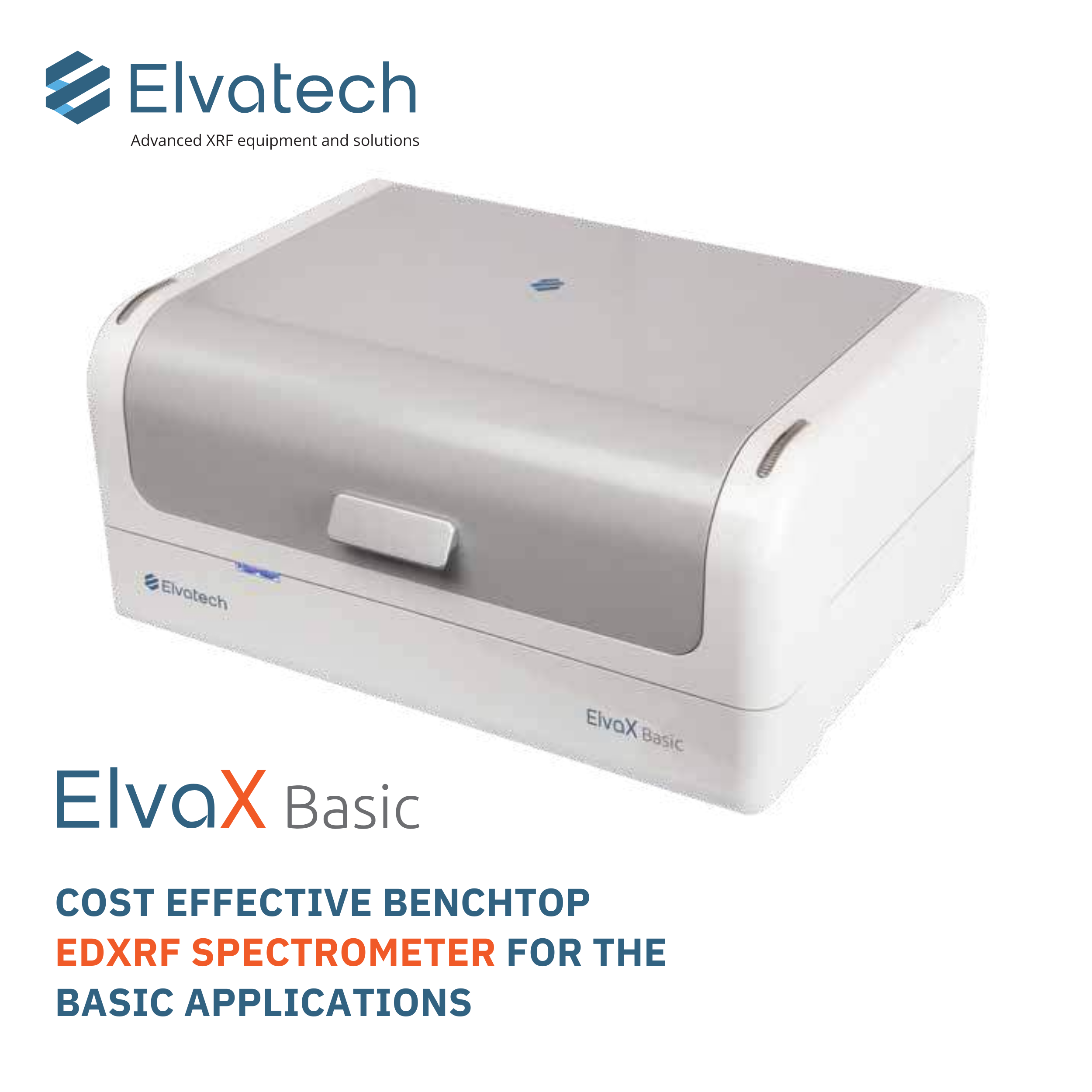

Elva X Basic

Entry-Level EDXRF Spectrometer for Laboratory Use

ElvaX Basic is a compact cost effective Energy Dispersive X-ray Fluorescence (EDXRF) spectrometer ideally suited for both qualitative and quantitative analysis of solids, liquids and powders in the element range from Cl (Z=17) to U (Z=92) in a wide range of concentrations.

Applications

Download Brochure

- +
  • Low cost
  • High speed and accuracy
  • Compact. Doesn’t occupy much space on a desk
  • Ergonomic design
  • High-performance analytical software included

ElvaX Basic is a cost effective high-performance solution to be applied in such spheres as jewelry, alloy sorting and express QC.

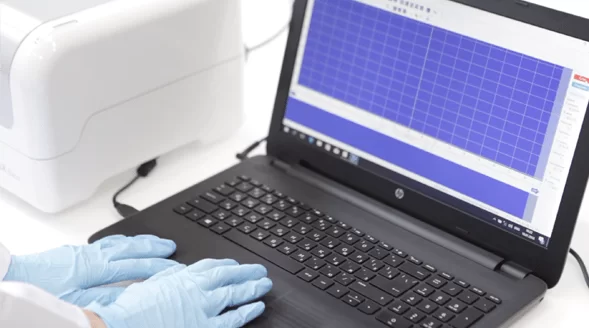

ElvaX Basic combines powerful analytical software toolkit with an easy-to-use interface, allowing even novice operators to perform any necessary measurements in minutes!

In the lab or in the production facilities, with ElvaX Basic you can get the performance and precision of an expensive powerful benchtop spectrometer at a considerably lower cost.

Specifications

Digital X-Ray Source digiX-40
Anode: W
Voltage: 40 kV
Current: 200 uAmp
Power: 4 W

X-Ray Detector
Type: Si-PIN (optional SDD)
Area: 6 mm2 (25 mm2 for SDD)
Energy resolution: 165 eV at Mn Kα (140 eV for SDD)

Electronics
DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels

General
Dimensions: 430 х 340 х 200 mm
Weight: 13 kg
Power supply: 90 – 240 VAC, 50/60 Hz
Power consumption: 40 W

Software
Operating system: Windows XP/Vista/7/8/10
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations, Manual spectra comparison
