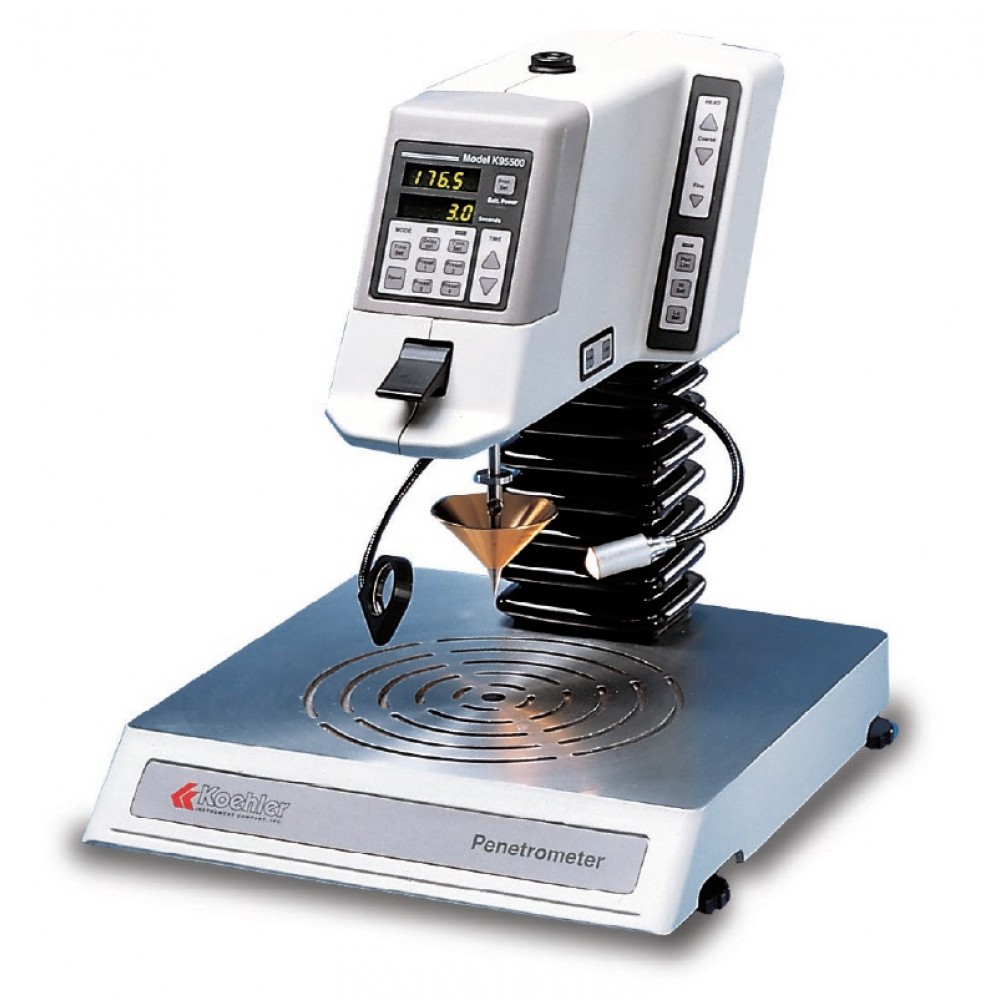

Digital Penetrometer

Digital Penetrometer

Conforms to the specifications of:ASTM D5, D217, D937, D1321, D1403, D2884, D4950, D5329;IP 49, 50, 179, 310; ISO 2137;DIN 51579, 51580, 51804;FTM 791-311, 791-312, 791-313;AOCS Cc 16-60; AACC 58-14;NFT 60-119, 60-123, 60-132,66-004
Penetration tests are performed on petroleum products to determine consistency and shear stability (lubricating greases) for design, quality control and identification purposes. A standard cone or needle is released from a penetrometer and allowed to drop freely into the sample for 5 seconds (or a different specified interval) at constant temperature. The depth of penetration of the cone or needle into the sample is measured in tenths of a millimeter by the penetrometer.

Download Brochure

  • Tests the consistency of lubricating greases, petroleum waxes, bitumens, pastes, creams and other solid to semi-solid products
  • Automatically timed operator programmable penetration measurements
  • Motorized placement of penetrator on sample surface
  • Large LCD to display all functions
  • RS232 port for data transfer
  • Full measurement range of 0-620 in 1⁄10mm scale or 1⁄100mm scale
  • Rechargeable battery or AC operation
  • Large, removable base accommodates grease worker cups and other ASTM and non-standard sample containers
  • Complete selection of penetrometer cones, needles and accessories for petroleum products testing and for a wide range of other applications
  • Conforms to all ASTM, IP, ISO 9001 and related specifications for penetrometers
