- Compact and lightweight design (18.3 kg)
- Output pulse duration <50 fs
- 5–10× pulse compression capability
- Compression efficiency >80%
- 24/7 operational stability (<0.24% RMS)
- Compatible with up to 80 W Yb femtosecond lasers
- Cascadable with HCF systems for few-cycle pulse generation

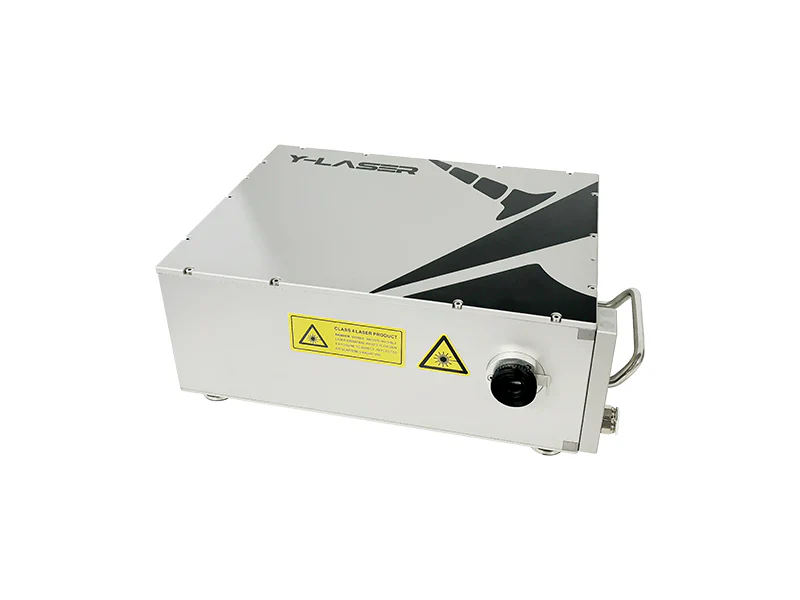

HYPERION-S
Compact MPC Pulse Compressor
The HYPERION-S is a compact multipass cell (MPC) pulse compressor designed for moderate pulse energies from 5–20µJ. It enables 5–10× pulse compression, delivering output pulses shorter than 50 fs with >80% compression efficiency.
Built in a lightweight 18.3 kg platform, the system offers exceptional reliability with 24/7 operational stability (<0.24% RMS) and strong resistance to environmental interference. Real-time monitoring ensures stable and repeatable performance during demanding ultrafast experiments.
The HYPERION-S is fully compatible with high-power Yb femtosecond lasers up to 80 W and can be cascaded with hollow-core fiber (HCF) systems to achieve few-cycle pulse generation, making it a versatile solution for advanced ultrafast applications.
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 1030 nm |
| Pulse Width | 50 fs |
| Average Power | 80 W |
| Pulse Energy | 20 µJ |
| Power Stability | <0.24% RMS |
| Dimensions (L×W×H) | 425.5 × 326.8 × 146 mm |
| Weight | 18.3 kg |
Applications
- Surface nanostructuring
- Precision micro- and part cutting
- Compact ultrafast laser systems
