- Conforms to ASTM D92 and related specifications
- Simple automation routine for easy operation
- Flash point operation for samples with an open cup flash point above 79°C
- Fire suppression system floods the instrument with inert gas in the event of a fire
- Equipped with Emergency Safety Switch
- Automatic barometric pressure correction
- Integrated Dual Fan System that directly cools test cup and surrounding environment
- Electric or Gas Ignition: Software selectable, no manual switching required

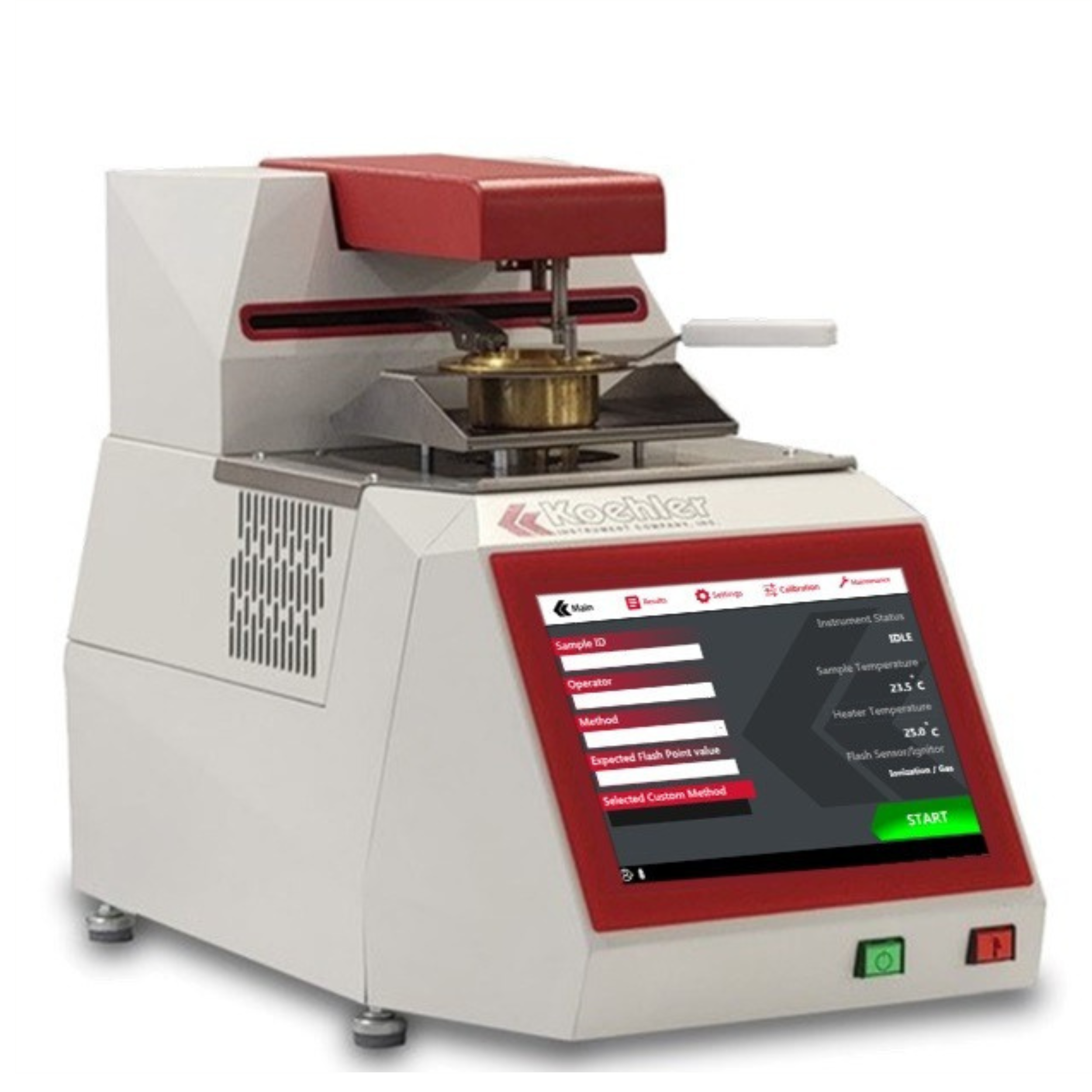

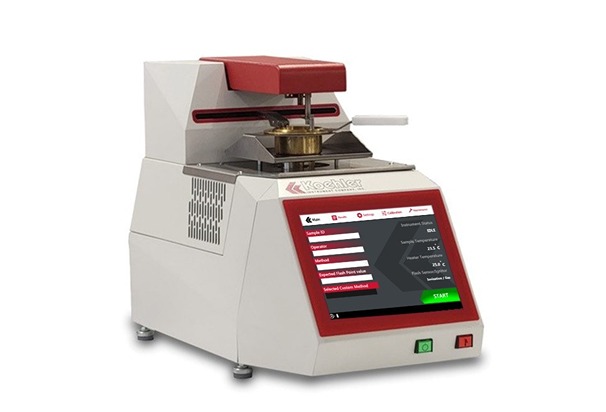

Automatic Cleveland Open Cup Flashpoint Tester ASTM D92
The Automatic Cleveland Open Cup Flash Point Analyzer is the latest addition to the Koehler Flash Tester family of products. This unit is robustly designed using state-of-the-art technology to allow for seamless testing in accordance with ASTM procedure. The system software runs on an integrated processor PC running the latest Windows operating system. The 10.4” touch screen interface fully displays all operator parameters and results on a single screen. Data results can be stored on the local hard drive. An integrated Dual Fan System directly cools the test cup and the environment around the cup.
For flash and fire points of all petroleum products, except for fuel oils, with flash points above 79 °C (175 °F) and below 400 °C (752 °F).
