- Accurate, Reproducible Results: Automating the titration workflow enables analysis to be run using the same setup parameters and calculations every time.
- Fast Setup Time: Setup and save electrode, titrant and titration parameters once using methods.
- Prioritize Lab Throughput: Start the titration, and let the instrument run unattended.
- Minimal Cost and Downtime: Easily replace titrator parts to minimize maintenance downtime while long lasting electrodes may reduce the cost of ownership.
- Securely Document Test Results: View results live, in the summary table and within the 100-point data log.
- Applications Database: Tested and validated preprogrammed methods can be easily loaded onto your titrator via USB flash drive.

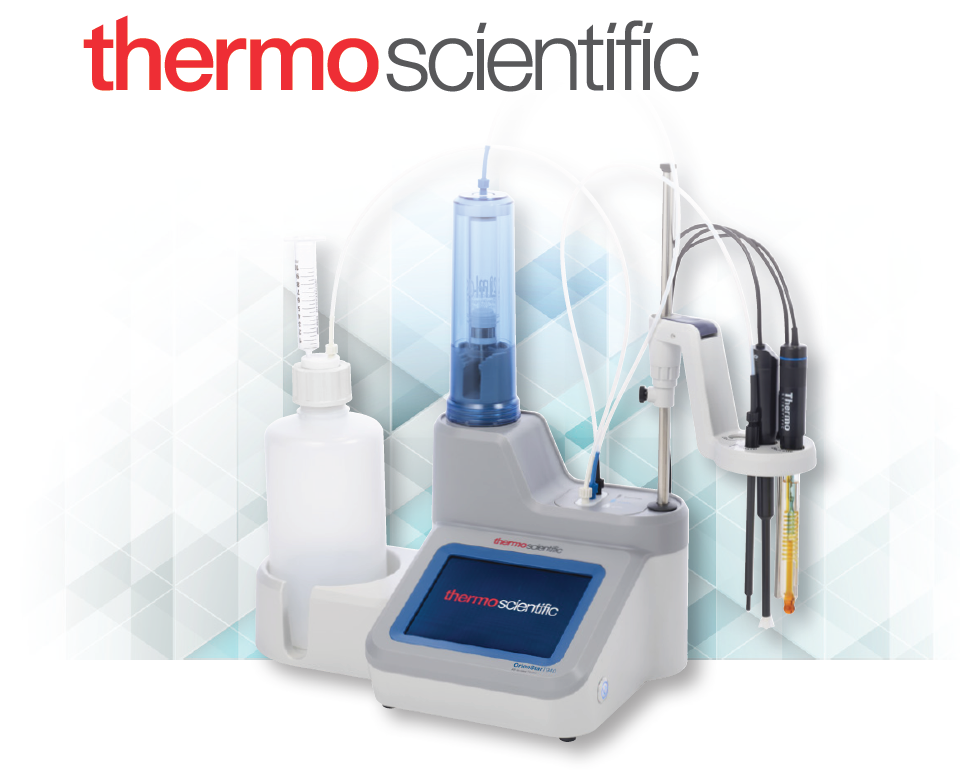

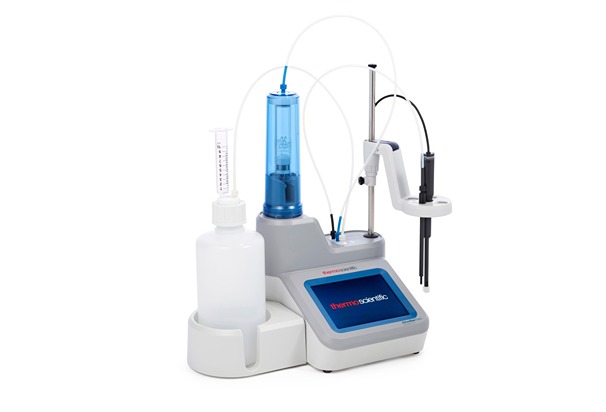

All-in-one Titrator Orion Star T940
Automate acid-base, redox and ion titrations for simple accuracy
Potentiometric titrator for accurate titrations with easily reportable results.
The Thermo Scientific™ Orion Star™ T940 All-in-one titrators are designed to increase your laboratory productivity by automating titrations. Our core electrochemistry technology is integrated with a state-of-the-art reagent dispensing system to create modern, simplified automated titrators designed to make performing titrations easier, more reliable and more reproducible than manual titrations.
Specifications
Titration Technique Equivalence point or preset endpoint
Titration Technique : Equivalence point or preset endpoint
Equivalence Points : 1 or 2
Preset Endpoints : 1, 2 or 3
Multiple Known Additional Points :Up to 5
Titration Types : Direct or back titration
Blank Options : Fixed value or variable value using titration
Cycles Per Titration : Run Up to 5 cycles with option to exclude cycles from average results and RSD calculations
Titrant Determination: Standardization titration or manual concentration input
Titration Process Control :Routine, quick, careful or user defined
Titration Precision: ±0.5 % RSD, dependent on environment and handling conditions

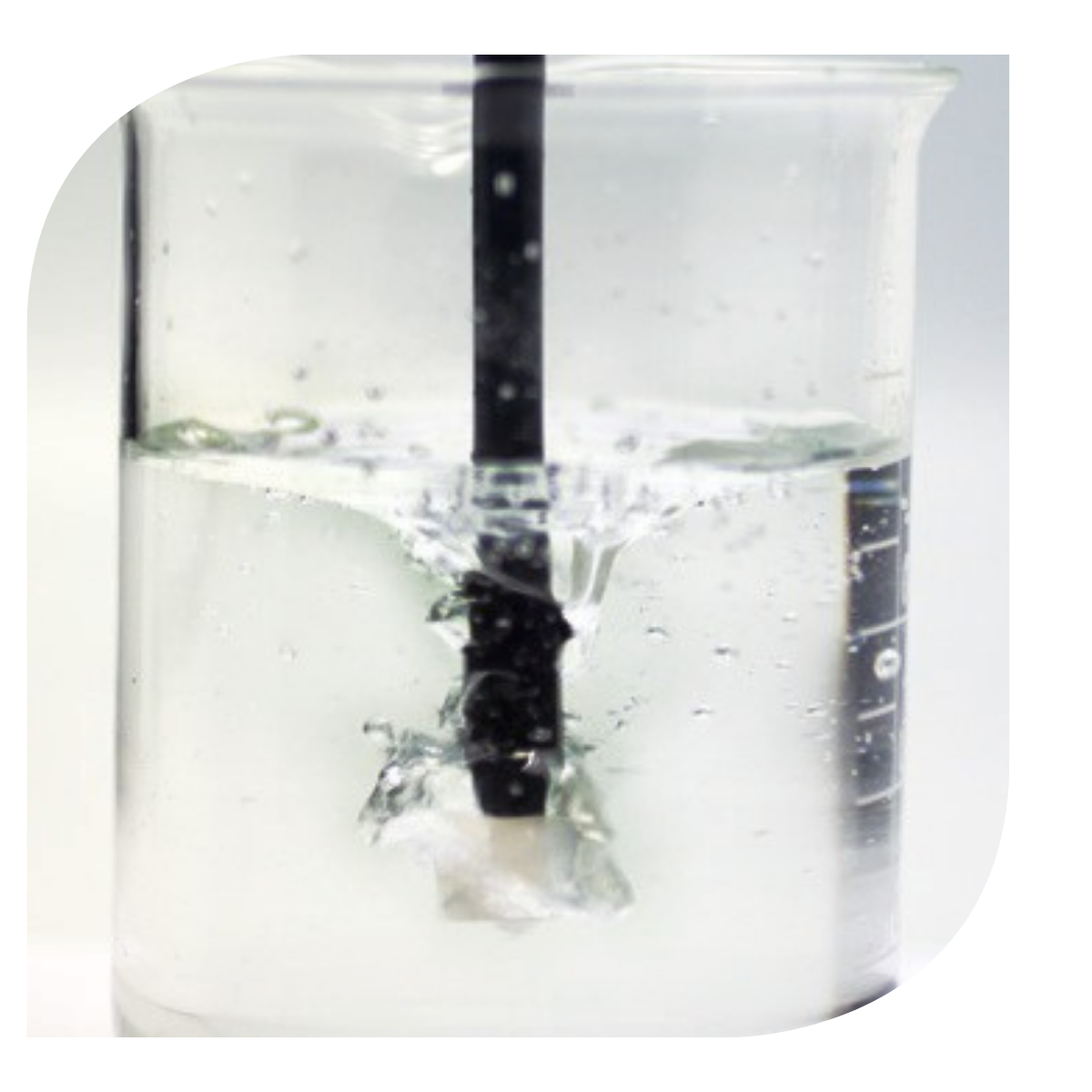

Stirrer Probe Speeds : 5 selectable speeds, 250 to 3700 RPM
Sample ID: Auto-incremental, manual or off
Titration Setup Wizard: Yes, using Start a New Titration workflow
Methods Up to 10 customizable methods with optional password protection
Methods Transfer Import/export via USB flash drive, summary to computer software or compact printer
Data Logs Sample titration, titrant standardization, calibration, direct measure – 100 data sets each
Data Log Export CSV or Report (PDF) file, short or long format
Time and Date Yes, with nonvolatile battery backup
Direct Measure Mode pH, redox or ion concentration with mV and temperature
pH Range : -2.000 to 20.000 pH
Resolution :0.001, 0.01, 0.1 (user selectable)
Relative Accuracy: ±0.002 pH
ISE Range :0.0001 to 19990
Resolution: 0.0001 minimum, 1 to 4 significant digits (user selectable)
Relative Accuracy : ±0.2 mV or ±0.05% of reading, whichever is greater±0.002 pH
Calibration Mode : 1 to 5 point pH, 1 point relative mV, 1 to 5 point ISE
mV Range: -2000.0 to +2000.0 mV
Resolution : 0.1 mV
Relative Accuracy :±0.2 mV
Temperature Range: -5.0 to 100.0 ºC; 23.0 to 212 ºF
Resolution: 0.1 ºC; 0.1 ºF
Relative Accuracy : ±0.2 ºC
Temperature Input: Manual or automatic with optional 1 point ATC probe offset calibration
Display Type : 5.7” color capacitive touchscreen, 640 x 480 resolution, with lab glove compatibility
